End Suction Pumps

March 6, 2025 by

End Suction Pumps

Efficient, versatile, and reliable pumps for commercial, industrial, and municipal water and wastewater service

We are an authorized manufacturer of Crane Pumps & Systems End Suction Pumps, including the Barnes, Burks, Deming, and Weinman brands. With simplified pricing, quick delivery, and industry-leading efficiency, these brands are an ideal investment for a variety of water handling needs.

Barnes

The Barnes brand of End Suction Pump is a centrifugal general-purpose pump designed to meet a variety of needs in the marine industry. It is dependable and high efficiency, providing quick delivery.

Details

  • Models: HCU Series
  • Flows to: 600 gpm
  • Heads to: 360 feet
  • Discharge: 2 or 4 inches
  • HP: 0.33-60
  • RPM: 1750 or 3450

Key Features

  • Cast iron construction
  • ABS (American Bureau of Shipping) Certified

Options

  • Can be configured in frame-mounted and close-coupled

Applications

  • General water circulation
  • Firefighting
  • Wash down

Documents

  • Capability Statement
  • Product Overview Sheet
  • Quick Response Services sheet
  • Pumps and Motors Sheet

Burks

Burks End Suction Pumps are dependable, highly reliable centrifugal pumps designed to perform at lower capacities for a broad range of water systems in commercial, industrial, and municipal industries. With their strong construction, they are easy to maintain and long-lasting.

Details

  • Models: GNA, GNB, GNC, G, GA, DF
  • Flows to: 1,100 gpm
  • Heads to: 380 feet
  • Discharge: ¾ inch to 4 inches
  • HP: 0.33-75
  • RPM: 1750 or 3450

Key Features

  • Cast iron construction
  • Can handle fluids up to 500°F
  • Direct drive or motor-operated
  • Back pull-out design
  • Bronze impeller
  • Renewable bronze shaft sleeve
  • Renewable bronze suction cover ring
  • Can be tank-mounted

Options

  • Can be configured in frame-mounted and close-coupled

Applications

  • High temperature fluids
  • Coolants
  • Building service
  • Washer lines
  • Irrigation

Documents

  • Capability Statement
  • Product Overview Sheet
  • Quick Response Services sheet
  • Pumps and Motors Sheet

Deming

Deming End Suction Pumps are general-purpose pumps with rugged construction, making them ideal for a variety of industrial water supply services. Dependable, versatile, and competitively priced, the Deming pumps are ideal for applications that require easy-to-maintain and long-lasting service.

Details

  • Models: 3000 and 4000 series
  • Flows to: 4000 gpm
  • Heads to: 780 feet
  • Discharge: 1-6  inches
  • HP: 0.33-60
  • RPM: 1750 or 3450
  • HZ: 50 HZ models available

Key Features

  • Cast iron construction
  • Highly efficient
  • Bronze impeller
  • Packaging box or mechanical seal
  • Renewable bronze shaft sleeve
  • Renewable bronze suction cover ring

Options

  • Can be configured in frame-mounted and close-coupled
  • Available with either semi-open or enclosed impeller types
  • Packing, double seals, and gland options
  • Available in 44 sizes to meet design requirements
  • Material options include 316 stainless steel and bronze (#5 Zinc free and #8 Naval)

Applications

  • Industrial service
  • Booster service
  • Chemical service
  • General water supply
  • Coolants
  • Washer lines

Documents

  • Capability Statement
  • Product Overview Sheet
  • Quick Response Services sheet
  • Pumps and Motors Sheet

Weinman

Weinman End Suction Pumps are dependable, general purpose and competitively priced centrifugal pumps with a rugged construction. They can meet a broad range of water supply services, with some models offered in a premium back pull-out design to increase reliability and uptime.

Details

  • Models: A, B, G, and K Series; 375/575 Back Pull-Out Series
  • Flows to: 4000 gpm
  • Heads to: 425 feet
  • Discharge: 1 to 10 inches
  • HP: 0.33-200
  • RPM: 1150, 1750, or 3450

Key Features

  • Quick delivery
  • NSF Certified
  • High pressure (up to 400lbs)
  • Highly efficient

Options

  • Can be configured in frame-mounted and close-coupled
  • 375/575 Series offers back pull-out design; can be configured with 7”, 9.5”, 13”, or 15.5” impellers and a full range of sizes

Applications

  • Booster service
  • General water supply
  • Cooling towers
  • Condensate systems
  • Building service
  • Washer lines
  • Irrigation

Documents

  • Capability Statement
  • Product Overview Sheet
  • Quick Response Services sheet
  • Pumps and Motors Sheet

You may also need:

Ball Bearing
Bearing Cover
Coupling
Deflector
Gasket
Impeller
Lip Seal
Mechanical Seal
Nuts
O-Ring
Packing Box
Pipe Plug
Screws
Seal Gland
Shaft
Shaft Key
Sleeve
Snap Ring
Studs
Wear Ring

For More Information

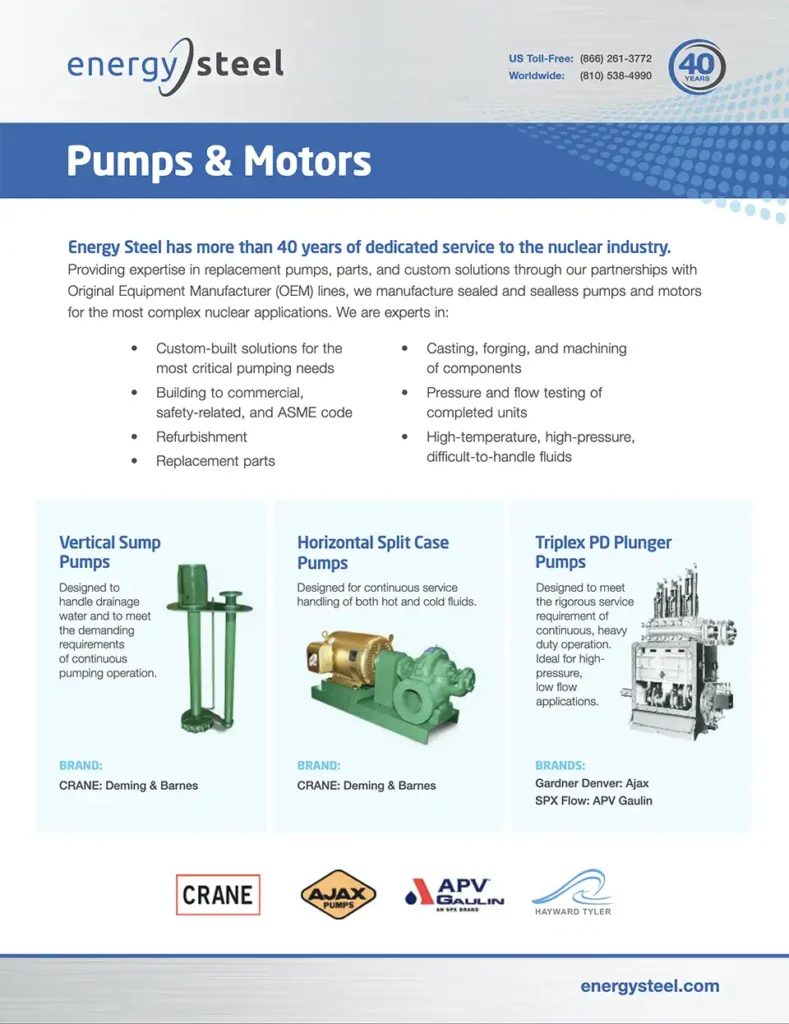

For additional details about our Pumps & Motors offerings, download the sheet.

Download
